Autorefractor Keratometer

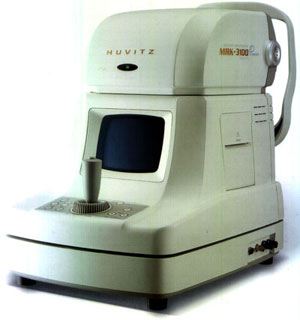

Huvitz MRK-3100P

autorefractor keratometer huvitz mrk-3100pToward the best in the world.

The Autorefractor Keratometer Huvitz MRK-3100P, designed by the newest technology is exported to all of the world effectively measuring the eyes of the world. Huvitz has certifications from the FDA, CE, and the ISO 9002 as the company that designed the Ref-Keratometer.

Variable, Precise Ref/Keratometer !

The Autorefractor Keratometer Huvitz MRK-3100P measures cornea curvatures, the iris, cataracts, Intraoccular lenses (IOL), CLBC, and the base curvature. All the measuring is accomplished with our wide ranged diopter.


Autorefractor Keratometer Huvitz MRK-3100P

Easy to use, convenient to measure!!

The Autorefractor Keratometer Huvitz MRK-3100P is so easy to use; there is almost no need for a user's manual, making it very convenient and comfortable for the operator as well as the customer.

IOL Measuring mode

The Autorefractor Keratometer Huvitz MRK-3100P determines the condition of the eyes automatically to detect if there are IOL's or cataracts, and measure them.

Beautiful, clear font

The font is easy to read and stands out, no matter what the background color is. The Autorefractor Keratometer Huvitz MRK-3100P supports multilingual menus (English, Chinese, and European languages ).

Retroillumination mode
  • You can see abnormal crystalline lenses, cataracts, corneas, and scratches on the contact lens with the IR (Infra Red) light that is reflected from the retina. Using this mode, you can determine how healthy the customer's eyes are.
  • We can examine the eyes very precisely because the MRK-3100P supports 4 images (2 images from each eye) and the operator can compare all 4 images at once.
  • The RetroIllumination mode is basically for looking at the eyes. In addition, it is possible for the information to be displayed as Sph, Cyl, Axis, of the eyes.

Measurement mode

K/R Mode

Continuous Keratometry & Refractometry

REF Mode


KER Mode



Contact Lens Base Curve Measurement



Vertex Distance (VD)

0.0, 12.0, 15.0

Sphere (SPH)

-25.00 ~ +22.00D (VD = 12mm) (0.12, 0.25D)

Cylinder (CYL)

0.00 ~ ±10.00D (Increments : 0.12 and 0.25D)

Axis (AX)

1 ~ 180° (Increments : 1°)

Cylinder Form

-, +, ±

Pupil Distance (PD)

10 ~ 85mm

Minimum Pupil Diameter




Radius of Curvature

5.0 ~ 10.2mm (Increments : 0.01mm)

Corneal Power

33.00 ~ 67.50D (When corneal equivalent refractive index is 1.3375) (Increments : 0.05/0.12/0.25D)

Corneal Astigmatism

0.00 ~ -15.00D (Increments : 0.05/0.12/0.25D)


1 ~ 180° (Increments : 1°)

Corneal Diameter

2.0 ~ 14.0mm (Increments : 0.1mm)

Memory of Data

10 measurements for each eye



Internal Printer

Thermal Line Printer

Power Saving

Automatic switch off (5 min)


5.5 inch (Black & White) CRT

Power Supply

100-240V~, 50/60Hz ,1A


300(W) x 500(D) x 430(H)mm / 21Kg



Contact us for Price*
