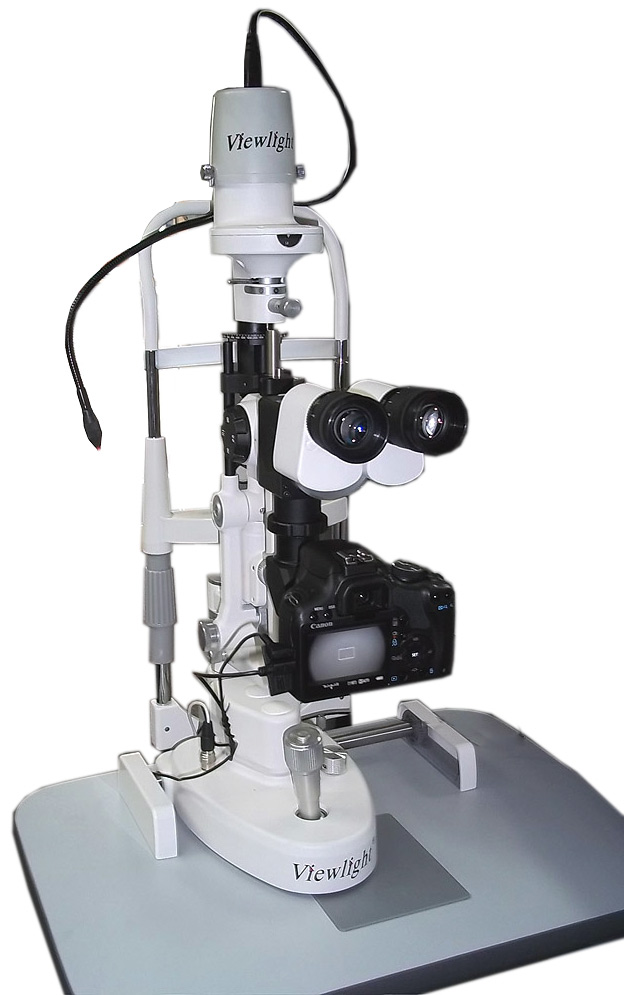

Slit Lamp Viewlight SL-7 Digital

Slit Lamp for Digital Imaging CSL-7D

The Slit Lamp for Digital Imaging System CSL-7 allows you to easily take pictures from the Slit Lamp to the camera memory card or directly to the computer.

The Viewlight CSL-7 Digital System includes:

Slit Lamp Viewlight CSL-7(see specifications below)
Beam Splitter
Digital Adapter
Camera Canon Rebel XSi (SLR 12.2 mpx)
Software for Photo Management Canon
Power adapter for Canon Rebel
Memory Card 8 GB
Electric Table
Camera parameters are setup, so you don't have to figure out the correct settings.
The electric table is shipped with the setup for the Slit Lamp CSL-7.

Ready to Plug and Play!

Call us now at (305) 593 2015 for price
and further inquiries.
(Se Habla Español)

Slit Lamp CSL-7 Specifications

The Galilean type microscope in the Slit Lamp for Digital Imaging system adopts revolving drum.
The excellent optical system can give you a clear and clean image.
The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.

The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients’eye in the Slit Lamp for Digital Imaging

The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
The modular design in the Slit Lamp for Digital Imaging can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image capture system.

Microscope：
Type ：	Galilean-Type
Magnification change ：	Revolving Drum
Total magnification Ratio ：	10×, 16×, 25×
	(standard configuration）
Eyepieces ：	12.5×
Angle between eyepieces ：	13º
Pupillary adjustment ：	55mm～78mm
Diopter adjustment ：	±6D
Field of view ：	40× (Æ5.5mm), 25× (Æ8.5mm),
	16× (Æ13.5mm), 10× (Æ22mm),
	6× (Æ34.7mm)
Slit Illumination:
Slit width ：	Continuously variable from 0 to 14mm
	（at 14mm,slit becomes a circle ）
Slit length ：	Continuously variable from 1mm to 14mm
Lamp ：	6V/20W Halogen Lamp
Slit angle ：	0º～180º (continuously adjustable both vertical and horizontal)
Slit inclination ：	4 step： 5º、10º、15º、20º
Filters ：	Thermal safety,UV,Red-free,Cobalt Blue
Aperture diameters ：	Æ14mm，Æ10mm，Æ5mm，
	Æ3mm，Æ2mm， Æ1mm，Æ0.2mm
Base：
Longitudinal movement ：	90mm
Lateral movement ：	100mm
Vertical movement ：	30mm
Chin-Rest：
Vertical movement ：	80mm
Fixation ：	Green LED
Power:
Input voltage ：	220V/110V～±10％
Input frequency ：	50Hz/60Hz
Power consumption ：	30VA（max）
Output voltage ：	Lamp 6V (continuously adjustable)
	Fixation 3V
Dimension & Weight:
Dimension ：	740mm x 450mm x 500mm
Gross weight ：	25Kg
Net weight ：	24kg
Working environment:
Temperature ：	+5℃～+40℃
Relative humidity ：	≤80%
Air pressure ：	800hpa～1060hpa
Storing environment:
Temperature ：	-40℃～+55℃
Relative humidity ：	≤93%
Air pressure ：	700hpa～1060hpa
Transporting environment:
Temperature ：	-40℃～+55℃
Relative humidity ：	≤93%
Air pressure ：	700hpa～1060hpa
