Sonomed 300AP PacScan A-Scan/Pachymeter

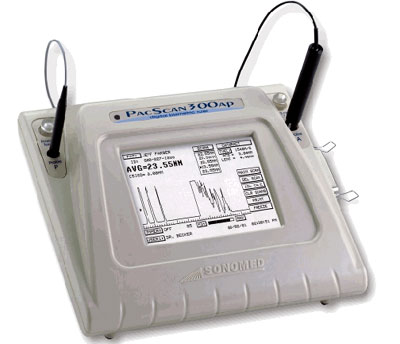

A-Scan Pachymeter Sonomed 300APThe A-Scan Pachymeter Sonomed 300AP offers a portable, digital, combination A-scan and pachymeter, with easy-to-use touch screen operation, extreme accuracy, repeatable measurements and reliability. The combination of a high frequency, low noise probe and fast precise algorithm enables scan capture immediately upon application of the probe along the visual axis.

The A-Scan Pachymeter Sonomed 300AP offers built-in immersion capabilities and up to eight IOL formulas, including two post-refractive formulas. Axial length, ACD, and lens thickness are provided for each scan. Group up to five scans with average axial length and standard deviation automatically calculated. Easily review each scan, delete outlying scans, and add new scans, as desired. Customizable tissue velocities of each structure and highly-developed automatic scan recognition algorithms ensure accurate and repeatable measures. Built-in calibration check ensures continued accuracy of system.

The PacScan pahymeter measurement accuracy and repeatability are assured by each scan actually consisting of 256 individual measurements and an automatic measurement algorithm to ensure that only scans with proper probe alignment are accepted. The high probe frequency and processing algorithms enable measures as thin as 125 microns, for measuring corneal flap or bed, and multiple corneal maps are available. Also comes standard with central corneal thickness correction calculator for measured applanation IOP.

  • Touch screen operation with large backlit display
  • Complete measurement and calculation record within seconds
  • Ability to store up to five different user profiles
  • Portable and compact weighing less than 6 pounds (3 kg)
  • Fully adjustable tilt for ergonomic comfort
  • Optional printer

The PacScan 300 series offers extreme portability, weighing less than 6 lbs (3 kg), and comes with optional padded carrying case. Optional printer allows for hardcopy record of scans, IOL calculations, and corneal maps. Data download and scan viewer software option also available to create permanent digital archive of scan results.

Two probe styles are available for both A-scan and pachymetry, depending upon user preference and scanning application. Built-in immersion scanning capabilities is provided with optional Prager shell for ease of use and the highest assurance of accuracy and repeatability.

The A-Scan Pachymeter Sonomed 300AP is available in three configurations: as a combination A-scan / pachymeter (300AP), stand alone A-Scan (300A), or stand alone pachymeter (300P)
