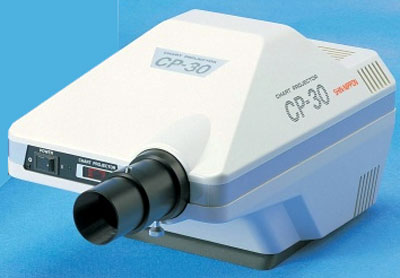

Shin Nippon CP-30 Z

shin nippon cp-30 zFeatures for Autoprojector Shin Nippon CP-30 Z:

  • Wide range inspections with 22 charts and 12 masks .
  • Energy saving with automatic power off function after app. 10 min. idlling.
  • Bright and uniform projection by halogen lamp
  • Large range of projection distance : 2 to 7 meters
  • CP 30Z is variable focus type
  • Wireless remote control has four different transmitting frequencies for conbination use of two or more units


Technical Specs:

Autoprojector Shin Nippon CP-30 Z

Main Unit Specifications
Projection distance 2-7 m
Projection magnification 21.5 x (at 5 m)
Projection size 267 mm x 267 mm (at 5 m)
Tilting Angle 5' upward, 5' downward
Auto power off

After 10 minutes

Lamp 12V, 30W halogen lamp
Power source 85V-132V, 170V-264V
Dimensions 380 mm (L) x 210 mm (W) x 190 mm (H)
Weight 4.5 kg (10 lbs.)
Remote Control Specifications
Control Wireless ( 4 wavelengths available)
Lamp ON/OFF switch provided
Power Source UM-4 batteries x 2
Dimension 180 mm (L) x 60 mm (W) x 18 mm (H)
Weight 110 g (4 oz.)

.Price for Autoprojector Shin Nippon CP-30 Z

Our Price: $1,645

If you need more information regarding the
Autoprojector Shin Nippon CP-30 Z
please fill the form and specify the model in the Comments Field.
