& Keratometry Measurement

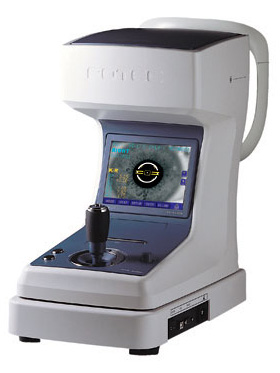

Autorefractor Keratometer Potec PRK6000 provides an extensive
dioptric measurement range (-25D to +22D), and the radius of curvature
for keratometry is 5.0mm to 10.2mm. Easy alignment and friendly operation
allows you to measure the refraction and keratometry in sequence, and
the results can be validated immediately. Owing to its easy alignment
and friendly operation you can measure the refraction and keratometry
in a sequence, the results can be checked all at once.
Peripheral corneal curvatures can be measured by having
the examinee look at the peripheral eye fixation lamps. Measuring the
corneal periphery will help you examine irregular astigmatism, and also
determine a better fitting for a contact lens
Intuitive Diameter Measurement
Using the freeze function, measurement of the diameter
of the cornea, pupil or hard contact lenses worn by the patient can be
performed. By simply touching and dragging the screen with your finger
measurements are exactly calculated.
TFT-LCD with Touch Screen
By adopting high resolution VGA TFT-LCD with Touch Screen
function, we virtually removed all input keys except the measurement button
on the Joystick and Chinrest control switches. Tests are performed rapidly
and conveniently by simply pressing a button or the icon indicated on
When refraction results in an error reading due to an
intraocular lens or cataract the measurement can be performed with the
IOL icon switched 'ON'
The chinrest is motorized with the use of a switch conveniently
positioned for the operator. This makes for simple adjustment of the chinrest
from patient to patient.
Printer with Auto Cutter Function
Simply touch the "PRINT" icon on the screen
and the Autorefractor Keratometer Potec PRK6000 will immediately provide
a complete printout of the measurement results. An Auto Cutter is provided
In autorefractor Keratometer Potec PRK6000 the Data can
be transferred to external devices (personal computer, etc.) via an RS-232
interface. A USB interface is also provided for future compatibility.
If you need more information regarding the
Autorefractor Keratometer Potec PRK6000
please fill the form and specify the model in the Comments Field.
Are you done with the Autorefractor
Keratometer Potec PRK6000 ? Go to Autorefractors.
