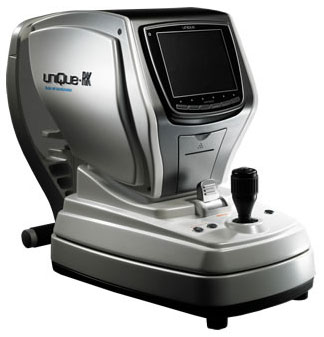

Autorefractor Keratometer
Unicos URK-800

autorefractor keratometer Unicos URK-800Features for Autorefractor Keratometer Unicos URK-800:

  • Latest Korean Technology
    • High Speed Measuring
    • Measure Iris and Pupil Diameters
    • 20 Tilted Monitor Display
    • 6.4 inch Color TFT LCD Monitor
    • Precise Temperature Sensors for Temperature Compensation
    • Eletric Power Chin Rest
    • Automatic Cutting Printer Paper

The Autorefractor Keratometer Unicos URK-800 full color LCD screen, icon-based operating system, and familiar joystick controls, enable any member of your staff to make quick and accurate measurements. This new model implements a Tilted monitor display and 6.4 inch LCD monitor, electric chin rest and automatic printer paper cutting.

The Autorefractor Keratometer Unicos URK-800 measurement data can be viewed on the color screen, and results can be printed with the fast and quiet, built-in printer.

Outstanding features Autorefractor Keratometer Unicos URK-800:

Improved Back Illumination function: You can check how much cystalline lens are blurred by catract and cornea is injured. At the same time, save 2 cuts for each eye (Max. 4 cuts for 1 patient), furthermore can compare between the captured data.

Irid and Pupil Diameter Measurement: By image capturing fuction, user can check iris & pupil diameter with ease. Therefore, accuracy of optometry will be reinforced.

Improved measuring speed: Specially designed image chips have succeeded to make REF measuring speed more faster. In the past, you had to stand-by till the fogging is over but now has succeeded to measure even if the fogging is not over.

Electric Powered Chin Rest: User can move new chin rest by just touching the button and new designed sensors make you avoid wrong operation in advance

Automatic printer paper cut: The data paper will be printed out and automatically cut at high speed.

Convenient lock knob: Just touching the lock knob one time, the user can fix the equipment.

20 degrees tilted LCD monitor: The LCD Monitor is designed to tilt up to 20 degrees so that the user could operate the machine more conveniently.

Graphic User Interface: Specially designed icons makes an easier to use interface

6.4 inch Color TFT LCD: Clear images and easy to understand icons

Specifications for Autorefractor Keratometer Unicos URK-800:

K/R mode Successive keratometry & Refractometry
Ref mode Refractometry
Ker mode Keratometry
CLBC mode Contact lens base curve measurement
Vertex Distance (VD) 0,10,12,13.5,15
SPH -25.00~+22.00D (0.12D,0.25D)
CYL 0.00~+/-10.00D
AX 1~180°
Cylinder form -,+,+/-
Pupil Distance 10~85mm
Minimum Pupil Diameter F 2.0mm
Radius of Curvature 5.0~10.2mm
Corneal Power 33~67.50D
Corneal Astigmatism 00.0~-15.00D(0.05/0.12/0.25D)
AX 1~180
Corneal Diameter 2.0~12.0 mm
Printer Thermal / Automatic cut printing
Power Saving Nominate by 3,5,10 minutes
Display 6.4inch TFT LCD colored Monitor
Power Supply AC 100~240v,50/60Hz/90w
Dimension/Weight 275(W)*525(D)*440(H), 20Kg
Chinrest Movement Max., 65mm , electric motor operating
Data Out-put RS-232 Interface, Video Output



Autorefractor Keratometer Unicos URK-800

Contact us for Price
