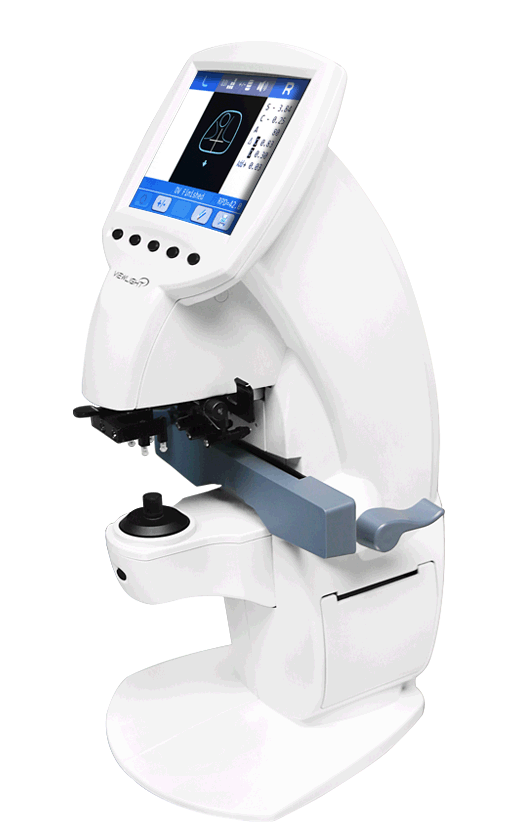

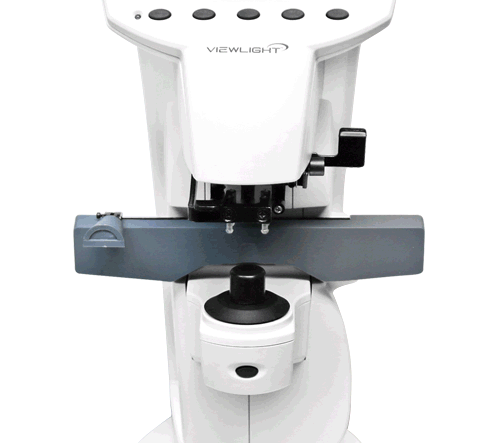

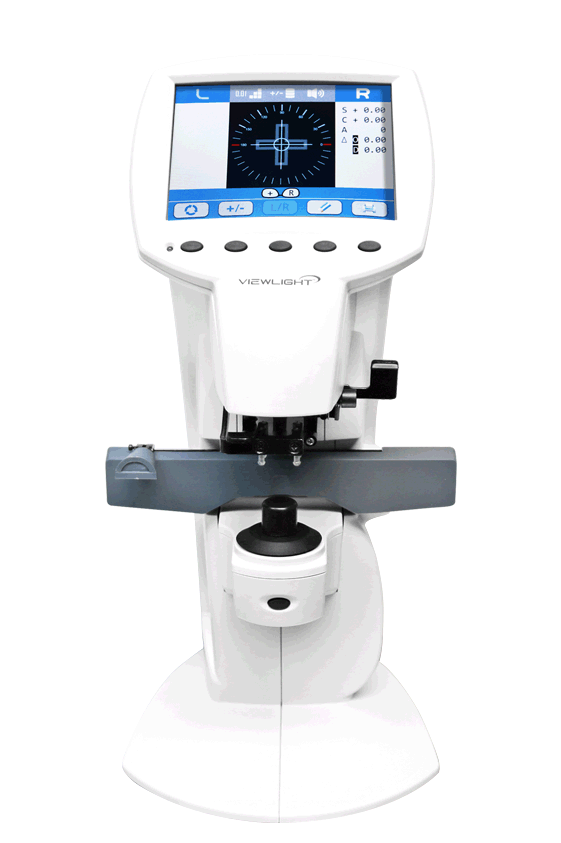

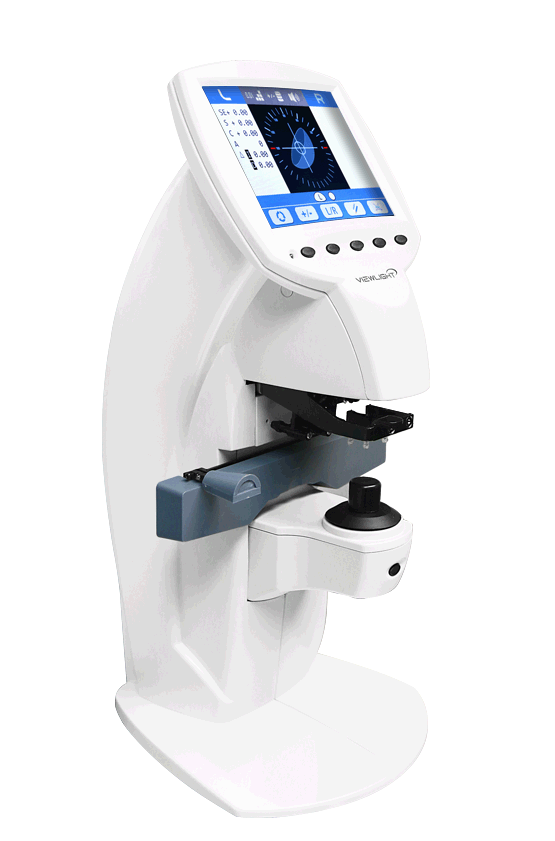

Viewlight Auto Lensmeter DLR 500

The Viewlight Auto lensmeter DLR-500 is an economic, full featured equipment with color screen, printer, pd distance, fast. Everything you need for your practice.

Main Features

1. Accurately measuring the low -degree lens below +-0.12D.
2. Measuring the colored lens with 10% transmittance.
3. Displaying the PH value in screen.
4. Measuring the progressive lens accurately and quickly.
5. Optionally installing PD measuring instruments, UV measuring instrument and thermal printer.
6. User friendly interface with easy operation; fast measurement, high accuracy and good repetition

Click to Zoom

Specifications for the Viewlight Auto lensmeter DLR-500

PD measurement 20.0-49.5MM
Spherical Power Range of Measurement: -25.00D ~ +25.00D
Contact Lens -25.00D ~ +25.00D (BC=6.00 - 9.00) (0.01D/012D/0.25D Steps)
Cylindrical Power -10.00D~+10.00D (-,MIX,+) (0.01D/0.12D/0.25D STEPS)
Axis 0~180°(1° Step)
ADD power 0.00D-±10.00D (ADD and AD2) (0.01D/0.12D/0.25D STEPS)
Prism power

0~-10 (horizontal) 0~-10 (vertical)
0.01 / 0.12 / 0.25 Steps

Applicable lenses: 20mm~100mm diameter
Applicable Contact Lens 5mm
PD measurement 20.0-49.5MM
UV Transmittance: >100% (+-15.00D = +-25.00D, >20%)
Color LCD display: 5.7 inches LCD monitor
Printer: Thermo Sensitive Printer
Data Interface RS-232
Power Supply Input AC 110V-240V, 50Hz-60Hz 40VA
Measurement: 190mm(W)*205 mm(D) * 418 mm(H)
Weight: 4.5 Kg
If you need more information regarding the
Viewlight Auto lensmeter DLR-500
please fill the form and specify the model in the Comments Field.
