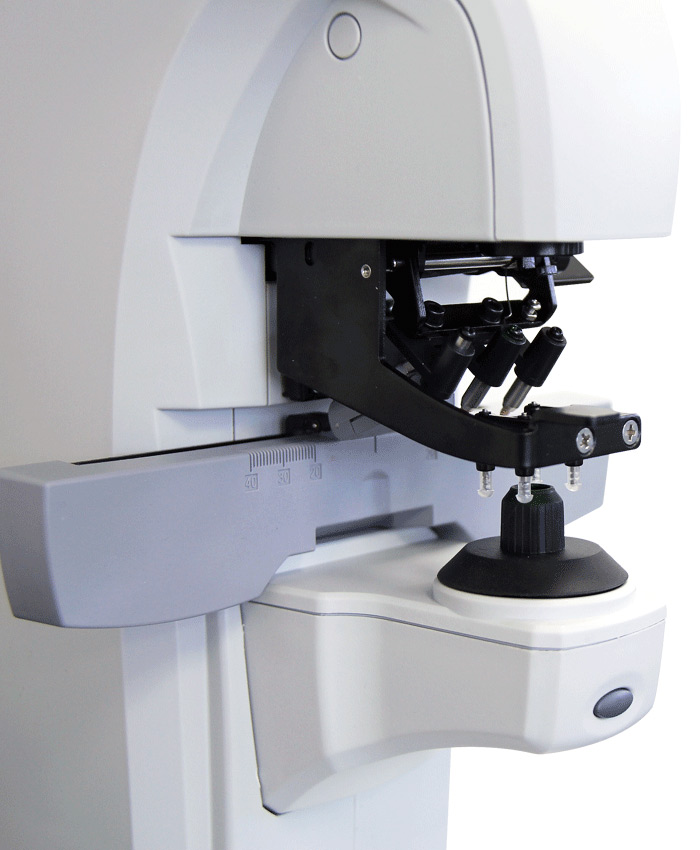

Viewlight Auto Lensmeter DLR-500

The Viewlight Auto lensmeter DLR-500 is an economic, full featured equipment with color screen, printer, pd distance, fast. Everything you need for your practice.

Main Features

  • Accurate measurement of low-degree lens, bellow +-0.12D
  • Measurement of colored lens with 10% transmittance
  • Digital display of PH value in LCD screen.
  • Optional PD and UV measurement and Thermal printer.
  • User friendly interface with easy, fast and high accuracy measurements.

Click to Zoom

Specifications for the Viewlight Auto lensmeter DLR-500

Spherical Power Range of Measurement:0~±25D
Contact Lens -25.00D~+25.00D (BC=6.00 - 9.00) (0.01D/012D/0.25D Steps)
Cylindrical Power -10.00D~+10.00D (-,MIX,+)
Axis 0~180°(1° Step)
ADD power -10.00D ~+10.00D (Add and Ad2)
Prism power

0~-10 (horizontal)
0~-10 (vertical)
0.01 / 0.12 / 0.25 Steps

Applicable lenses: 20mm~100mm diameter
Applicable Contact Lens 5mm
PD measurement PD=42mm~80mm
UV Transmittance: >100% (+-15.00D = +-25.00D, >20%)

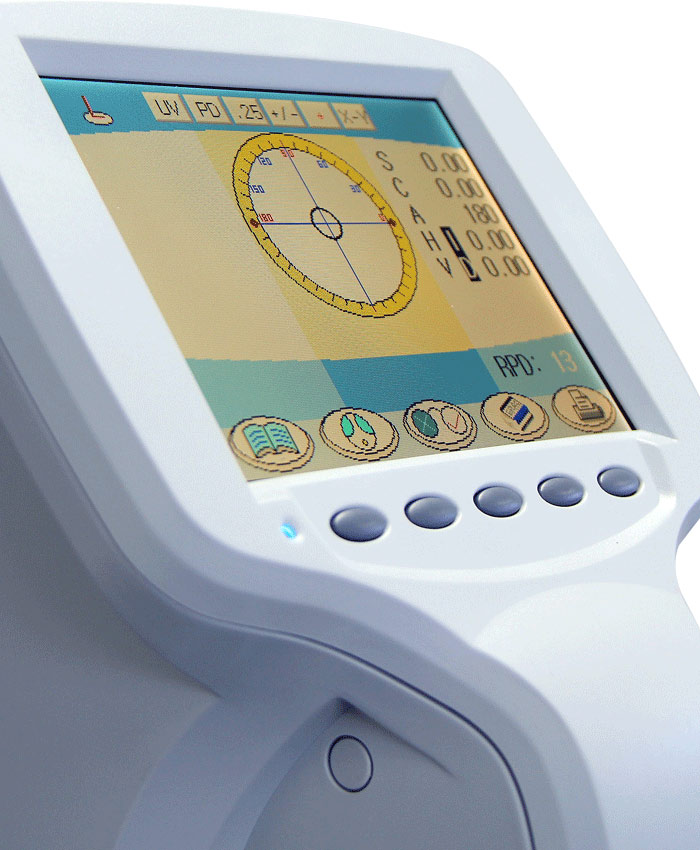

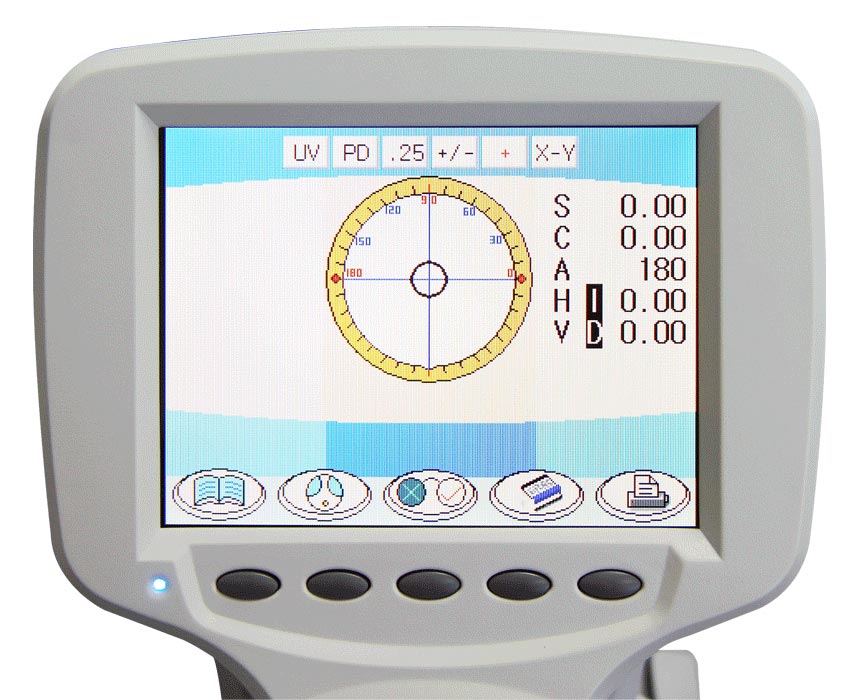

Color LCD display: 5.7 inches TFT LCD monitor
Printer: Thermal Printer
Data Interface RS-232
Power Supply Input AC 110V-240V, 50Hz-60Hz
Measurement: 190mm(W)*205 mm(D) * 418 mm(H)
Weight: 4.5 Kg
