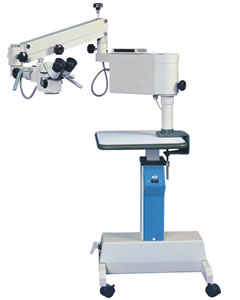

Surgical Microscope Viewlight OSM-100



Characteristics of Surgical Microscope Viewlight OSM-100


· Three-step magnifications.
· Spring balance system in the arm ensures the microscope move freely.
· All of the lens are multi-coated, mildewproof and anti-reflection
· Optional accesories and other parts applicable to ENT, SURGERY and , gynecology.

Specifications for the Surgical Microscope Viewlight OSM-100

Eyepiece Magnification
12.5×/18B
 Adjustable Diopter
 ±5D
 Adjustable range for Pupil Distance
 50mm~70mm
 Illumination Source
 12V/100W,Halogen Lamp
 Illumination Type
 6°Coaxial Illumination
 Coaxial Illumination
 ≥10000lx
 Reaching Range of Arm
 860mm
 Adjustable Vertical Range
 850mm~1100mm
 Voltage
 AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz
 Power
 120VA
 Fuse
 AC250V T1.25A 、AC125V T2.5A
 Electrical Safety Standard
 Conform to Standard IEC 601-1.Class1Type B
 Whole Packing Volume
 0.283m3
 Number of cartons with electric table
 2 ( note electric table is optional )
 Total Weight
 35kg

Objective/Working Distance(mm)
Magnification
Diameter of Field(mm)
 f200/190
6X
Φ35
10X
Φ22
16X
Φ14
 f250/240
4.2X
Φ52
6.7X
Φ34
11X
Φ20



Contact us for Price

1 Year Warranty
