PD Meter Viewlight PD-10

PD Meter PD-10

Click to Zoom

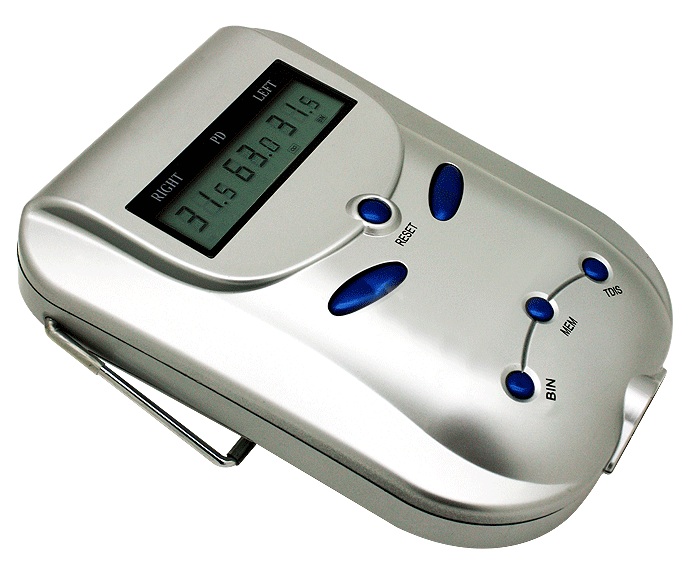

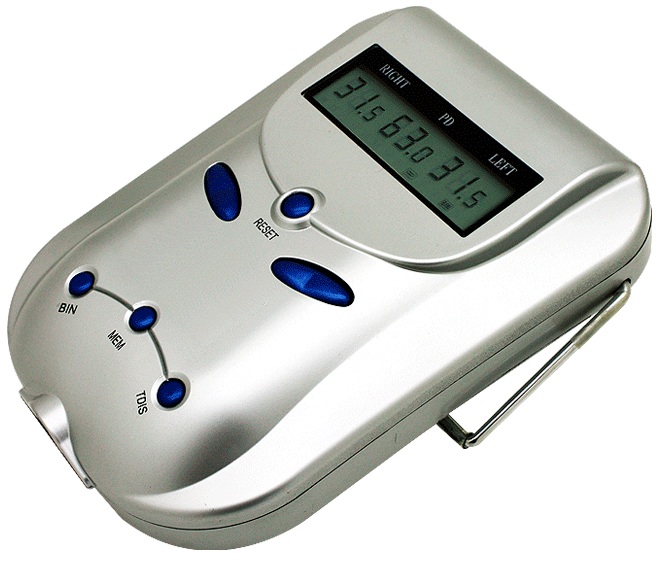

The PD Meter DPM-10 is a digital precision optical instrument used to measure distance between human pupils in the process of optometry for fitting spectacles.

  1. It employs precise optical structure, the line of light is very clear and precise measurement. The measurement results are displayed digitally,and the left eye and right eye measuring values are displayed separately.
  2. Simple and rapid measuring operation, and free operation of the direct PD adjustment lever are possible. Combining with the adjustable viewing distance selecting lever for measuring all kind of the viewing distances, the PD measurement is simple and precise.
  3. When the measuring operation is finished, the auto power off and memory function,enable to save the power and not to lose the data.
  4. It can also be used in monocular the left eye and right eye separately.
pd meter Pd meter
Measuring Range Two eye pupil distance: 44-83 mm
Availability measure range Two eye pupil distance: 22-41.5
Left/right distance 22.5 - 41 mm
Show error 0.5 mm
Aim distance 30 cm ~ 8
Power DC 6V / 4 pcs of batteries
Power auto shut off 1 min after not using
Size 214 x 150 x51 mm
Weight 0.8 kg


Contact us for Price
