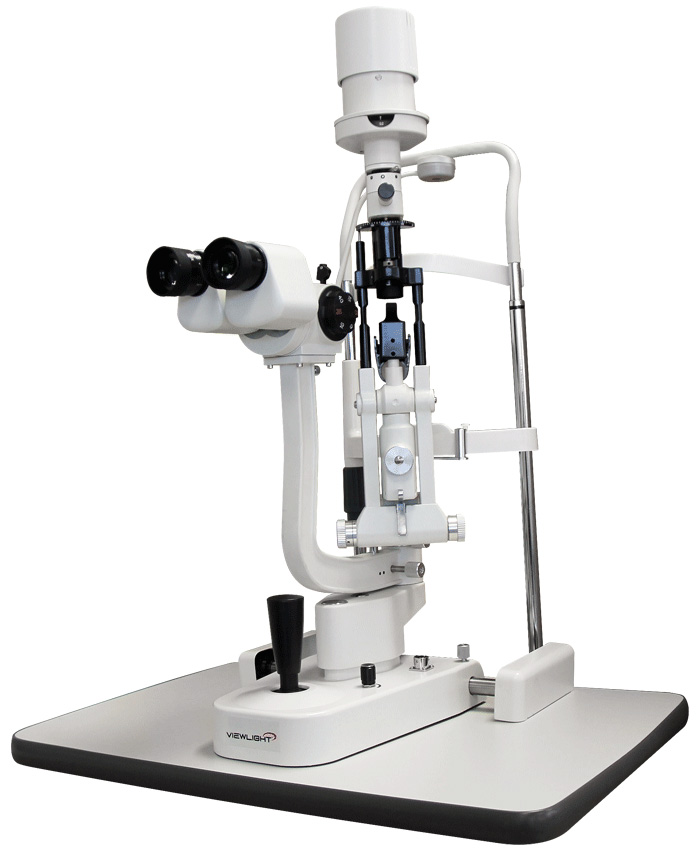

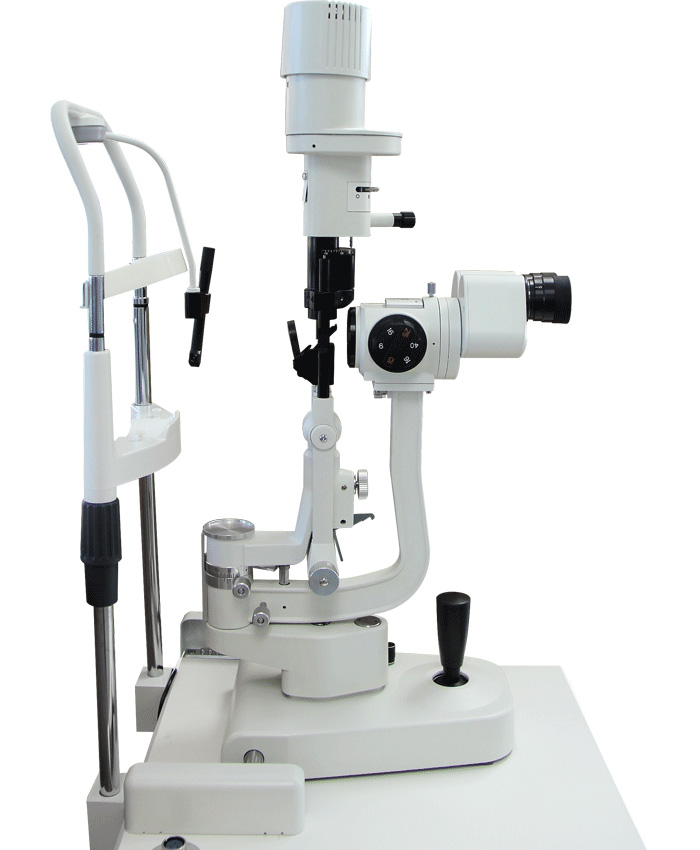

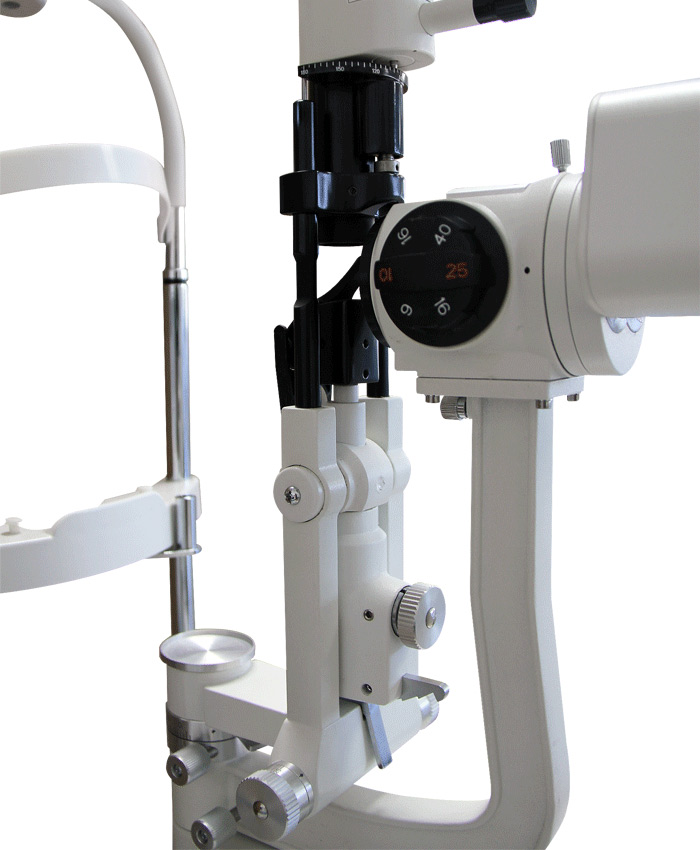

Slit Lamp Viewlight SL-3
·
The bulb and optical lens in the Slit Lamp Viewlight SL-3 are made of
glass imported from Germany.
·
All the lens are multi-coated, mildewproof and anti-reflection.
·
All the adaptors are universal in the Slit Lamp Viewlight SL-3.
Specifications of Slit lamp Viewlight SL-3
Microscope
Type
parallel
Stereoscope
Magnification
Five-step
magnifications
Eye
piece
12.5x
Total
Magnification and Diameter of Visual Field(mm)
6x（Φ33）、10x（Φ22.5）、16x（Φ14）、25x（Φ8.8）、40x（Φ5.5）
Adjustable
Range of Pupil Distance(mm)
55~75
Adjustable
Diopter
-5D~+3D
Slit
Width(mm)
0-9
adjustable
Slit
Height(mm)
1~9
adjustable
Slit
Angle
0~180°
Slit
Inclination
5°、10°、15°、20°
Light
Spot Diameter (mm)
Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2
Filter
heat
absorption , grey ,redfree , cobalt blue
Illumination
Bulb
12V
/ 30W halogen bulb
Voltage/frequency
AC220V±10%/60Hz±1Hz.
AC110V±10%/50Hz±1Hz
Power
58VA
Electrical
Safety Standard
Conform
to Standard IEC 601-1.Class1Type B
Whole
Packing Volume
0.30m3
Carton
Number
2
Total
Weight
51kg
Contact us for Price
If you need more information regarding the
Slit Lamp Viewlight SL-3
please fill the form and specify the model in the Comments Field.
